Cellular Antenna > SMD Type > CETI
CETI
2G Cellular SMD Antenna
824-960;
1710-1990 MHz
Name
CETI
Part Number
SZP-C-0C01
Dimensions
25.0 x 10.0 x 3.3 (mm)
A highly compact yet high-performance solution for embedded design. Synzen have created the optimal solution for 2G/NB-IoT applications that simplify the design in process and allows you to focus on the product. This antenna resonates best paced at the center of the longest PCB edge and produces a near omni directional pattern unlike patch antennas meaning the device orientation is less critical.
• For 2G and NB-IoT Applications 824MHz to 1990MHz
• Covers NB-IoT bands 5 and 8
• Resistant to de-tuning
• Ultra-compact design (only 25mm long)
• Clean resonance with no unwanted out of band response.
• SMD component supplied in Tape and reel
• Ideal for smaller designs.
• Simple design in process
SZP-C-2L14
5G antenna
617-960; 1427-1518; 1710-2200; 2300-2400; 2500-269; 3300-4200 MHz
SZP-C-0L10
4G LTE SMD Antenna
698-960; 1710-2170; 2300-2400;
2500-2690 MHz

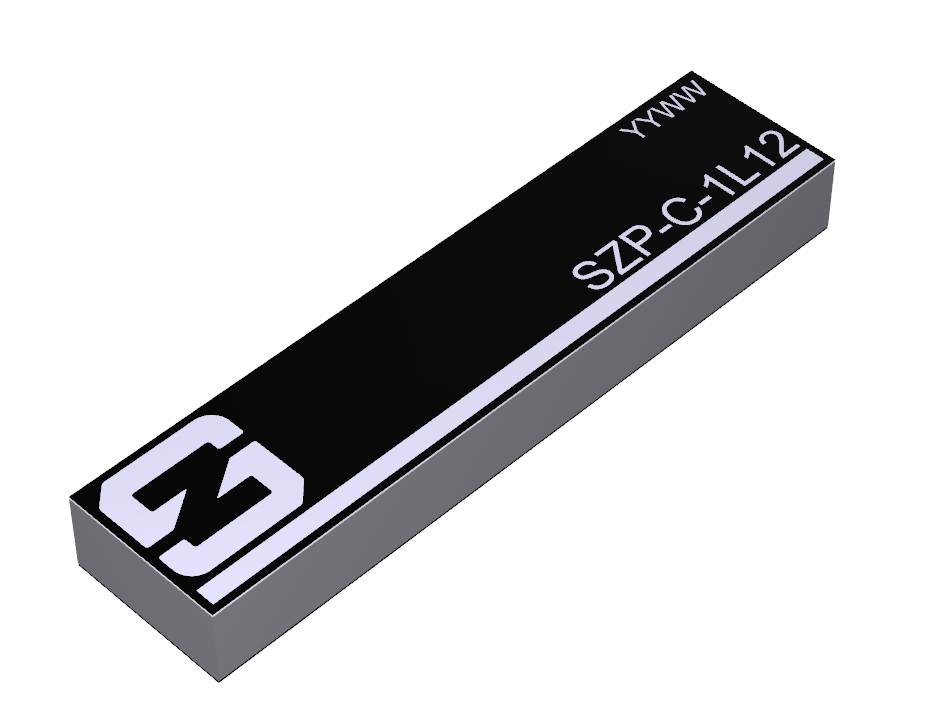

SZP-C-1L12/13
4G LTE Antenna
698-960; 1710-2200; 2300-2400; 2500-2690MHz
SZP-C-3L33
4G LTE Antenna
698-960; 1710-2200; 2300-2400; 2500-2690MHz
